無線測溫集中采集觸摸屏:無線測溫觸摸屏可以嵌入式安裝在高壓柜、低壓抽屜柜內，每臺裝置可以接收240個傳感器的數據，可與ATE100、ATE200、ATE300三種傳感器選配使用。裝置帶有一路485接口、可選配一路以太網口，可將采集到的溫度數據上傳到監控中心。

ATE400 迷你型無線溫度傳感器適用于動觸頭，母排，電纜，母排、電纜搭接處等多種場合。

The mini type called ATE400 is suitable for using at moving contacts, bus bars, cables and joints
between bus bar and cable.

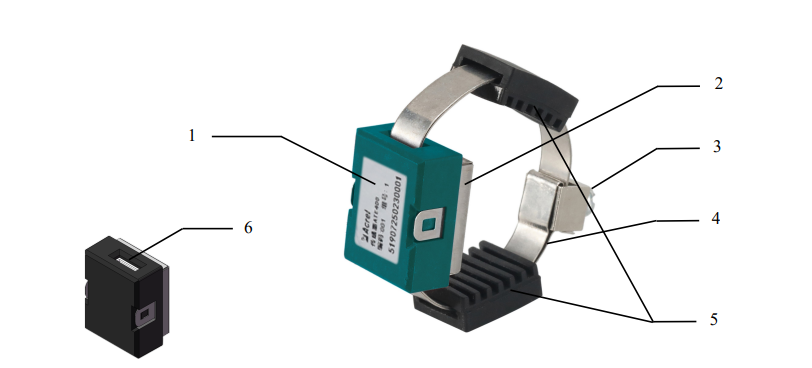

迷你型無源無線溫度傳感器結構說明：

Mini type passive temperature sensor structure introduction:
1 —— 溫度傳感器主體 The core of wireless temperature sensor ATE400
2 —— 合金底座，與溫度探頭接觸 alloy bottom, touched with temperature probe
3 —— 鎖扣，用于固定合金片 metal hasp, for fixing alloy chip
4 —— 取電合金片，用于感應取電 alloy chip, for CT-powered
5 —— 硅膠墊片，用于支撐合金片 silicone gasket, used to support the alloy chip
6 —— 合金片安裝孔，用于安裝合金片 alloy chip hole, used to install the alloy chip

取 2 根合金片穿過鎖緊件安裝孔，將合金片居中對折后鎖緊件固定在折彎處；將對折后的 4 層
合金片分別穿過硅膠墊片-傳感器主體-硅膠墊片；將整體傳感器環繞安裝部位一圈后拉緊合金片并
旋緊螺絲；合金片多余部分留取適當長度并折疊壓緊。合金片安裝示意過程如下：

Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy
chips and fix the metal hasp in the middle of alloy chips. Secondly, take the folded alloy chips through one
silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips
around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp. Finally,
subtract the excess alloy chips. The complete installation process is shown in Figures 1 to 4.
