濟南廠家生產雙軌廠房倉庫簡易貨梯載貨電動導軌式液壓升降貨梯

濟南廠家生產雙軌廠房倉庫簡易貨梯電梯電動導軌式液壓升降貨梯

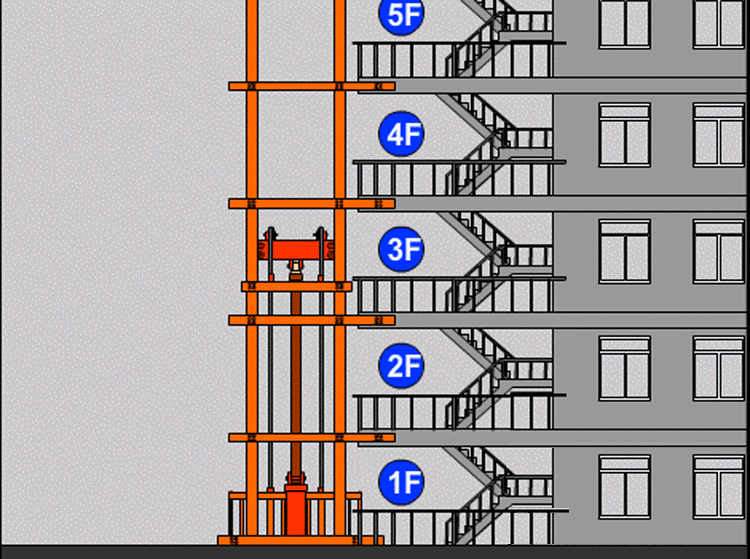

導軌式升降貨梯是一種非剪叉式液壓升降機械設備。用于二三層工業廠房，餐廳，酒樓樓層間的貨物傳輸·低高度在150-300mm，尤其適合不能開挖地坑的工作場所，并且無須上部吊點，形式多樣化（單柱，雙柱，四柱）。設備運行平穩，導軌式升降機的導軌一般為槽鋼、工字鋼，方管焊接制成，操作簡單可靠，貨物傳輸經濟便捷。 不能到達要求的場合等比較難解決的狹小空間，可以量身打造率的送貨平臺，產品液壓系統設置防墜、上下層門互動連鎖，各樓層和升降臺工作臺面均可設置操作按鈕，實現多點控制。產品結構堅固，承載量大，升降平穩，安裝維護簡單方便，是經濟實用的低樓層間替代電梯的理想貨物輸送設備。根據升降臺的安裝環境和使用要求，選擇不同的可選配置，可取得更好的使用效果。 故障率低：由于采用了的液壓系統，且有良好的控制方式,電梯運行故障率可將至低。 導軌式升降貨梯，耗電量少：液壓電梯下行時，靠自重產生的壓力驅動，大幅度節能。

The guideway elevator is a kind of non-shear hydraulic lifting and lifting mechanism. Layer used for secondary and tertiary industrial workshop, restaurant, wine shop floor between the transport of goods, the minimum height from 150-150 mm, particularly suited to can't work of the excavation pit, and do not need the upper lifting point, in the form of diversification (single column and double column, the four pillars). The equipment is running smoothly, the guide rails of the guide type elevator are generally made of channel steel, steel, and tube welding, the operation is simple and reliable, and the goods are economical and convenient.

Cannot reach the requirements of the occasion, such as difficult to solve in the narrow space, can make the efficient delivery platform, product set for hydraulic system, the door on the interactive chain, floors and lifting platform work table can set operation buttons, achieve multipoint control. The product structure is strong, the load is large, the lift is stable, the installation maintenance is simple and convenient, is the economical and practical low floor space to replace the elevator's ideal cargo transport equipment. According to the installation environment and usage requirements of the elevating platform, different optional configurations are selected for better use.

The failure rate is low: because of the advanced hydraulic system, and good control mode, the failure rate of the elevator will be lowest.

Low power consumption: when the hydraulic elevator is down, it is driven by the pressure of self-gravity, and it is very efficient.

一、技術參數及報價如下：

1. 規格型號：SJD3-4

2. 臺面尺寸：1500×3400mm

3. 有效起升高度：4000mm

4. 額定載荷：≥3000KG

5. 起升速度：4—6米/分鐘

6. 系統工作壓力：≤16兆帕

7. 動力源：組合式液壓齒輪泵，電機功率4KW，AC380V（組合泵站）

8. 電器：德力西電器，上下控制。

9. 執行單元：液壓油缸：90/60  2支，關鍵密封件采用日本“NOK”

10. 導軌材料：70×70×4mm方形管（Q235C）,組合件

11. 臺面材料：120×60×4m矩形管（Q235C）,組合件

12. 拉動鏈條：16A,4條

13. 同步鋼絲繩：?12鋼絲繩，4條

14. 導向及上升機構：各滾輪內部加裝各種型號軸承，提高使用壽命。

15. 臺面鋪板：4mm花紋鋼板
